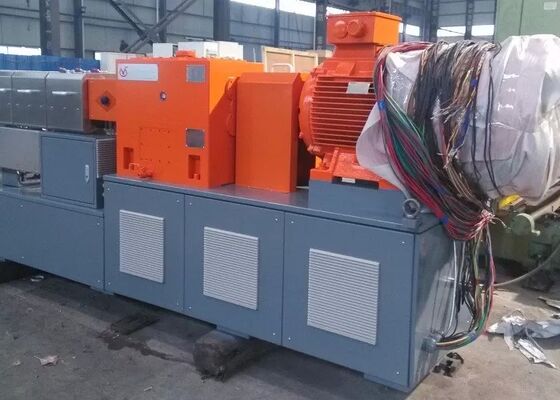

62.5mm Plastic Twin Screw Extruder 300 to 500 kg per hour ISO9001 Certified

62.5mm Plastic Twin Screw Extruder 300 to 500 kg per hour ISO9001 Certified

62.5mm Plastic Twin Screw Extruder 300 to 500 kg per hour ISO9001 Certified

Nama merek:	ADVS
Nomor Model:	PZE65
MOQ:	1 Set
harga:	USD 34000-200000
Ketentuan Pembayaran:	T/T

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Cina

Sertifikasi:

ISO9001

Kondisi:

Baru

Layanan purna jual yang disediakan::

Insinyur Tersedia Untuk Melayani Mesin di Luar Negeri

Menyorot:

ekstruder plastik sekrup kembar, ekstruder plastik daur ulang

Pembalik:

ABB/SIEMENS dan sesuai kebutuhan Anda

Kemasan rincian:

Kotak besi

Deskripsi Produk

Product Description

PZE 65 Series Competitive Extruder with Output 300-500 kg / h

1 . Basic Information :

Item	Specification
Model No.	PZE 65
Equipment Type	Twin Screw Extruder
Screw Diameter	65mm
Primary Processed Plastics	PP PA PBT ABS PC POM PPS PET and glass fiber reinforced materials
Product Category	Granulating Extruder
Feeding Mode	Multiple Feeding System
Assembly Structure	Separate Type
Engagement System	Full Intermeshing
Screw Channel Structure	Deep Screw Channel
Exhaust System	Multi-stage Exhaust
Control System	Highly Automated Computerized Control
Trademark	ADVS
Transport Package	Iron Box
Origin	Sichuan China

2 . Technical datas of PZE series high standard extruder :

Parameter	110kw Configuration	132kw Configuration	160kw Configuration
Screw Diameter (mm)	62.5	62.5	62.5
L/D Ratio	40	40	40
Motor Power (kw)	110	132	160
Max Screw Speed (rpm)	600	600	600
T/A3 Ratio	7.5	8.5	9.2
Center Distance (mm)	52	52	52
OD/ID Ratio	1.53	1.53	1.53
Output Range (kg per hour)	300 to 400	350 to 500	550 to 700

Reinforcement modification PP PA PBT ABS PC POM PPS PET with carbon fiber and glass fiber
Filling modification PE PP EVA with calcium carbonate talcum powder titanium dioxide carbon black and other inorganic fillers
Masterbatch production Color masterbatch flame retardant masterbatch carbon black masterbatch degradable masterbatch
Plastic alloy production PC and ABS PA and ABS PA and PE PBT and PET
Special engineering plastic processing PEEK PEI PPS PPSU PA6T PA9T LCP
High compounding dispersion extrusion Nano material powder coating and fiber grade masterbatch
Reaction extrusion Polymerization and polycondensation
