30 - 51mm Twin Screw Extruder Gearbox Ganti / Overhaul Untuk Meningkatkan Kecepatan
Kontak Person : Grace Pu
Nomor telepon : 86-18180485887
Ada apa : +8618180485887
| Kuantitas min Order : | 1 set | Harga : | USD 11000-28000 |
|---|---|---|---|
| Kemasan rincian : | Kotak kayu | Waktu pengiriman : | 30-45 hari kerja |
| Syarat-syarat pembayaran : | T / T |
| Tempat asal: | Cina | Nama merek: | ADVS |
|---|---|---|---|
| Sertifikasi: | ISO9001 | Nomor model: | PHL62 |
|
Informasi Detail |
|||
| Aplikasi: | mesin | Fungsi: | Ubah kecepatan |
|---|---|---|---|
| Menyoroti: | gearbox extruder plastik,gearbox mesin |
||
Deskripsi Produk

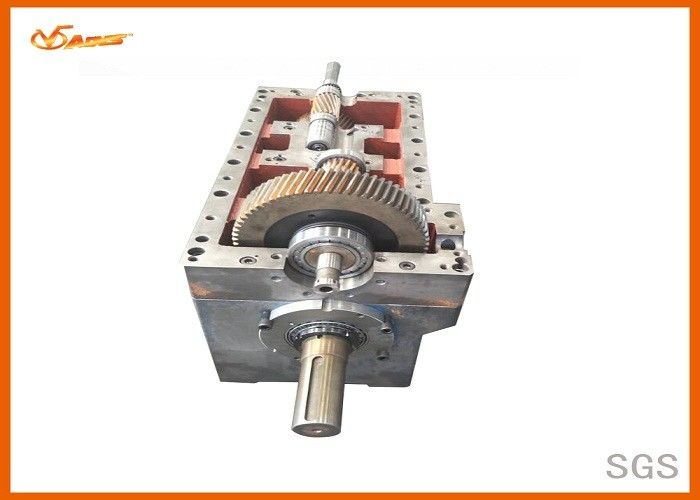

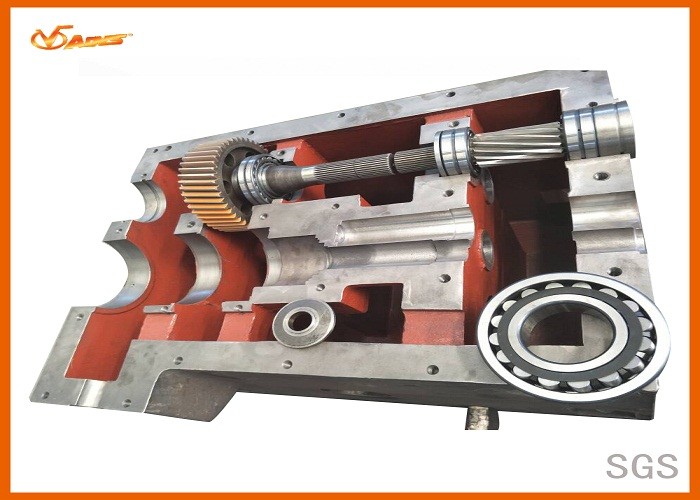

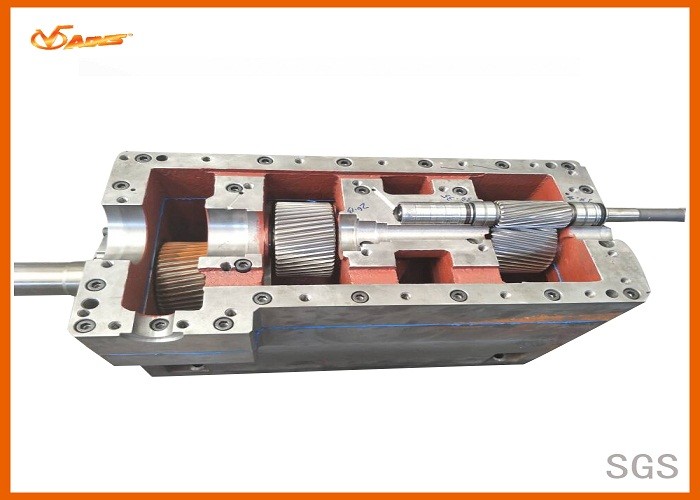

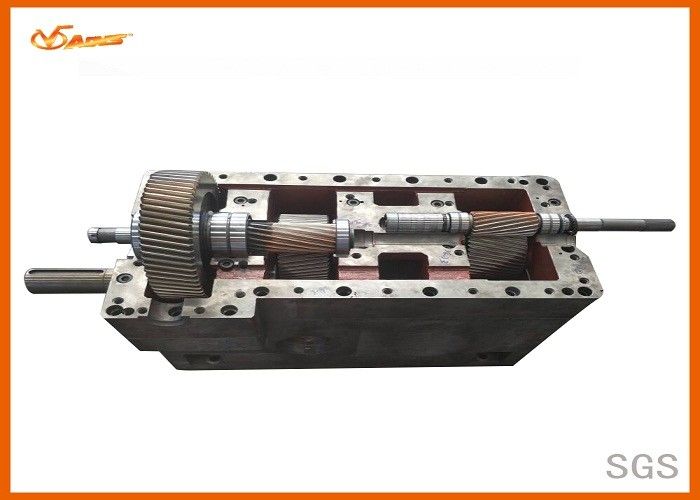

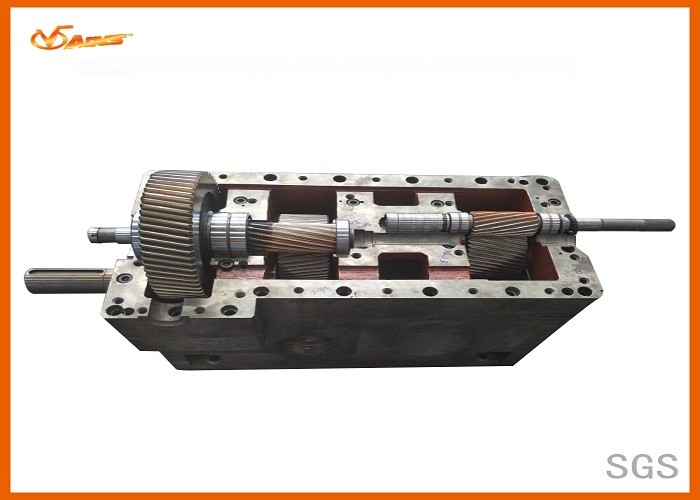

PHL62 Gearbox Mengadopsi Sistem Penggerak Gear Simetri Bilateral
1.Pengantar :
gearbox: sistem penggerak gigi simetri bilatral;umur layanan desain lebih dari 72000 jam, koefisien torsi rata-rata = 10,4, merek bantalan Swedia SKF dan Jerman INA;
2.Data teknis dari gearbox stardard seri PHL:
| diameter sekrup | 57-66mm | 37 ~ 42mm | 48-54mm | 53-62mm | 56-63mm | ||||
| jarak pusat | 52mm | 60mm | 64 mm | 76 mm | 78mm | ||||
| n2 | Pmax 2T Fmax | Pmax 2T Fmax | Pmax 2T Fmax | Pmax 2T Fmax | Pmax 2T Fmax | ||||
| rpm | kw NM KN | kw NM KN | kw NM KN | kw NM KN | kw NM KN | ||||
| 300 | 75 2X1190 227 | 110 2X1750 290 | 144 2X2290 290 | 220 2X3500 426 | 250 2X3980 426 | ||||
| 400 | 90 2X1070 227 | 144 2X1720 290 | 185 2X2200 290 | 315 2X3760 426 | 330 2X3960 426 | ||||
| 500 | 110 2X1050 227 | 185 2X1770 361 | 240 2X2290 361 | 390 2X3750 507 | 415 2X3980 507 | ||||
| 600 | 144 2X1150 268 | 220 2X1750 361 | 280 2X2230 361 | 450 2X3600 507 | 500 2X3980 507 | ||||
| diameter sekrup | 34-40mm | 37 ~ 42mm | 48-54mm | 53-62mm | 56-63mm | ||||
| jarak pusat | 30mm | 33,4 mm | 42 mm | 48mm | 51mm | ||||
| n2 | Pmax 2T Fmax | Pmax 2T Fmax | Pmax 2T Fmax | Pmax 2T Fmax | Pmax 2T Fmax | ||||
| rpm | kw NM KN | kw NM KN | kw NM KN | kw NM KN | kw NM KN | ||||
| 300 | 15 2X238 55 | 20 2X318 85 | 37 2X590 227 | 55 2X875 227 | 75 2X1190 227 | ||||
| 400 | 19 2X229 55 | 27 2X322 85 | 50 2X590 227 | 75 2X895 227 | 90 2X1070 227 | ||||
| 500 | 24 2X229 55 | 35 2X330 85 | 60 2X580 227 | 90 2X860 227 | 110 2X1150 227 | ||||
| 600 | 30 2X238 55 | 42 2X330 85 | 75 2X596 268 | 110 2X875 268 | 144 2X1160 268 | ||||
2.Deskripsi gearbox PHL62:
